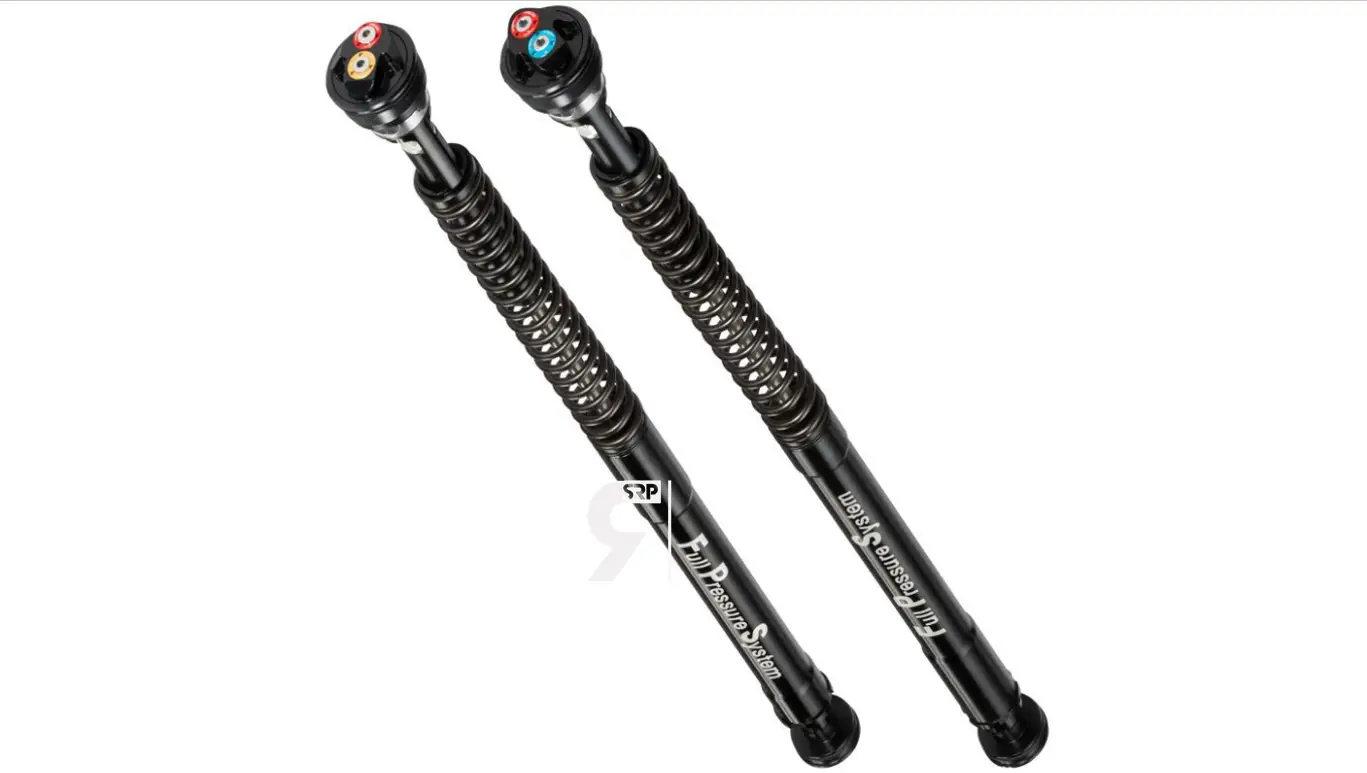

Adjustable pressurized cartridge: preload, rebound, compression, 1 liter oil and +17mm
The EBH pressurized cartridge contains a series of innovative systems such as the already known FPS, EC, LC and the new OPC (over pressure control) over pressure control system.
These systems are the result of a long development experience by Bitubo Research and Development department in collaboration with some of the best teams that have participated in the World SBK, BSB, IDM, CIV.
On the top cap there are all the adjustments, spring preload, rebound and compression which are distinct in the two cartridges, simple and intuitive.
The high damping coefficient already from very low speed controls the excessive sinking of the front end from the very first moments of braking.
TECHNICAL FEATURES
– Hydraulic control with FPS system (Bitubo patent) piston Ø27mm in ergal
– Pumping rods Ø10mm with anti-friction surface coating
– Mechanical limit switch with polyurethane pad in NBR
– Cr-Si steel springs, with heat treatment, settling process and final shot peening
– Upper fork cap with integrated spring preload adjustment
– Independent adjustment of the compression and rebound damping
– Coaxial compensation chamber (Bitubo patent)
– Ergal cartridge body with anti-friction surface coating
– Hydraulic lubrication separate from the sliding lubrication
– Force control system pressurization
